Mute Wedge 40 Condensate Pump

Silent condensate drain pump for all types of air conditioning systems

Technical Specifications

•Power supply: 100-240V AC 50/60Hz

•Max. Flow: 40 L/H (10.6 GPH) @ 0 head

•Sound level: 20dB(A) @ 1 M (3.3 FT)

•Max. discharge head: 20 M (65.6 FT)

•Water Storage: 230 ML

•Max. unit output: 46kW / 157,000BTU/H

•Safety switch: 3A Normally closed

•Max. water temperature: 70°C

•Discharge tube: 6 MM ID

•Class:Ⅱ appliance 回

•Rated: Continuous

•IP Protection: IPX5

•Fully potted: Yes

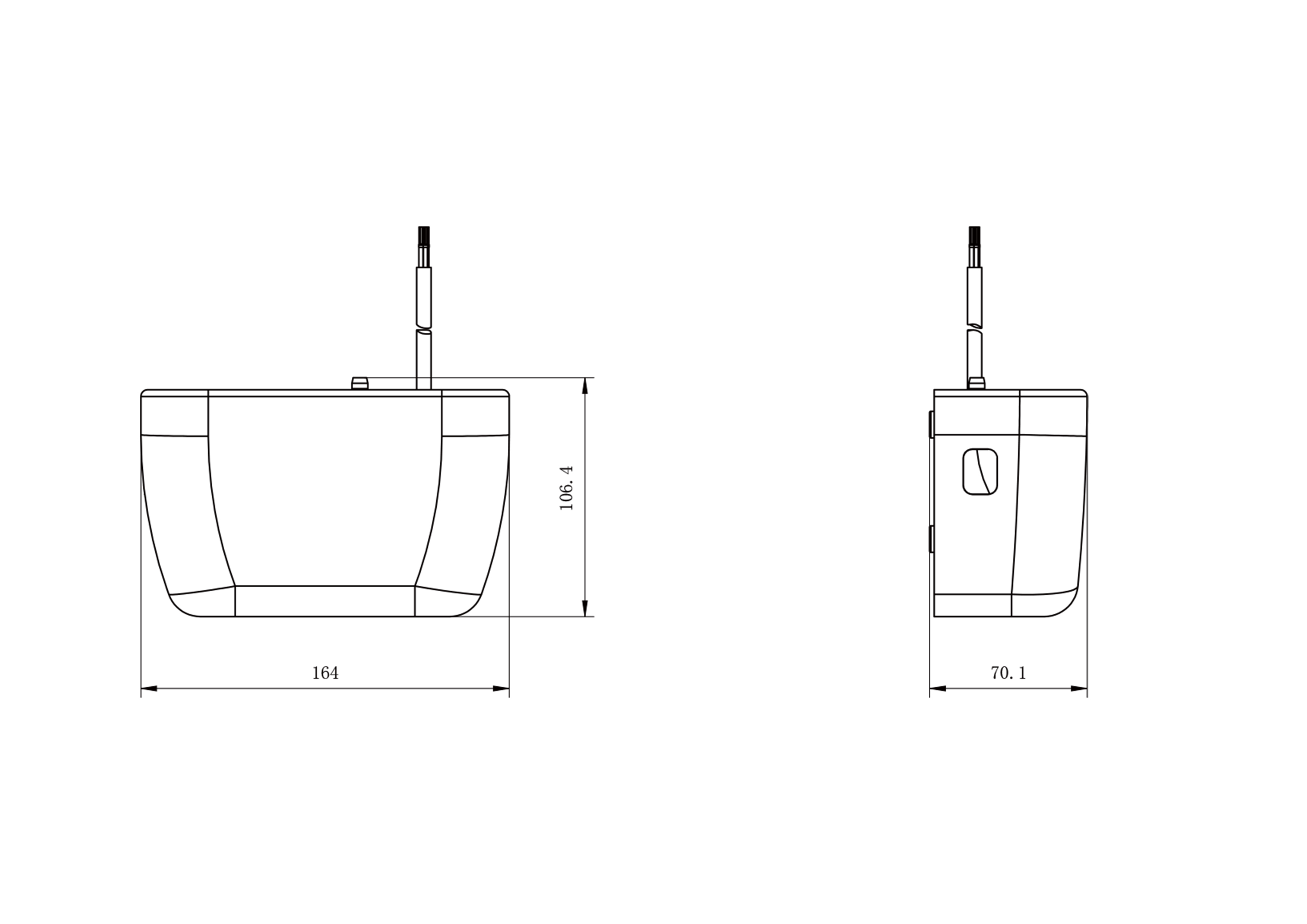

•L×W×H: 164 MM x 70 MM x 106 MM
