Product Details
Lofluorine crimp Ring
Efficient sealing prevents refrigerant leakage

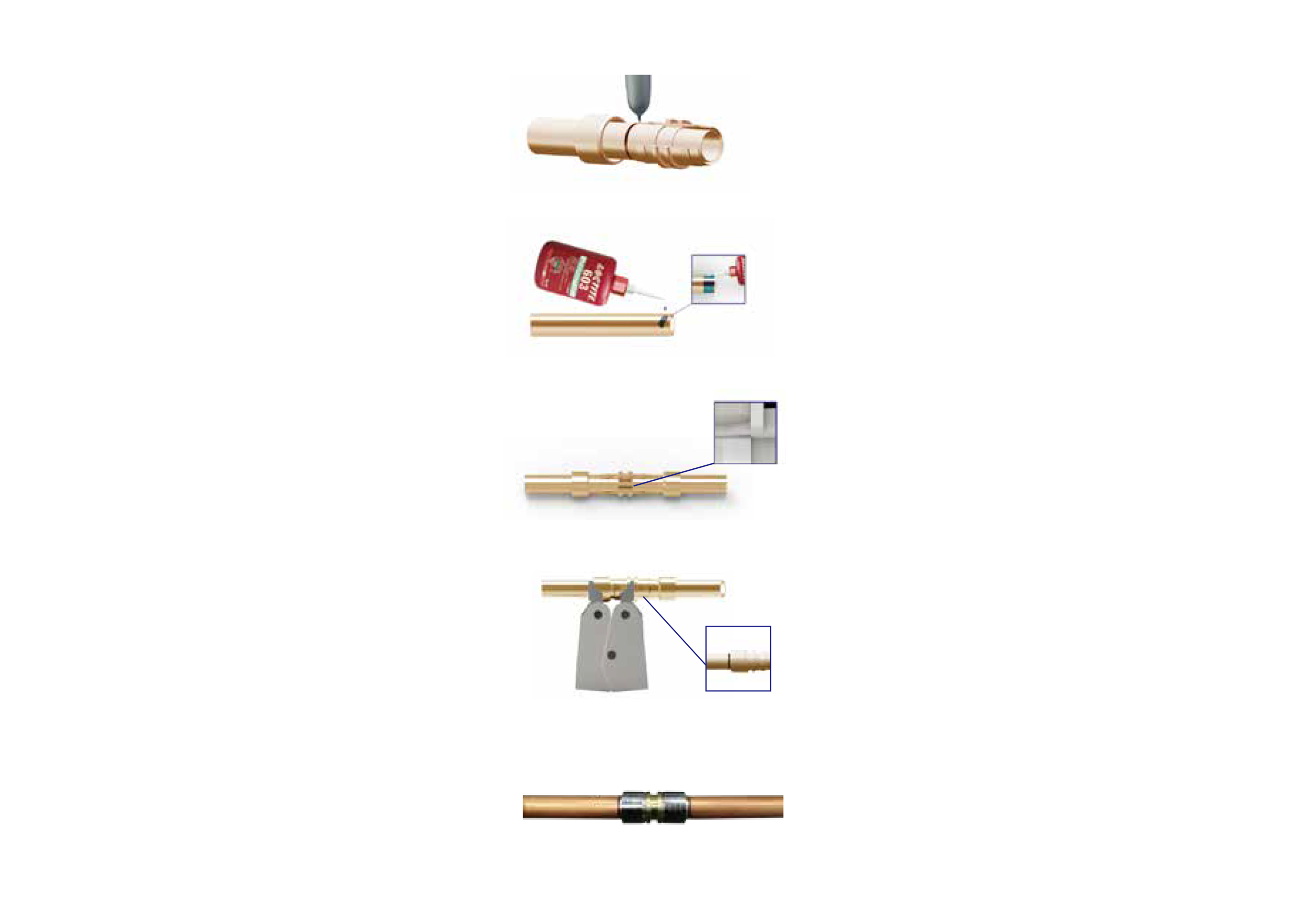

Installation Steps
•Step 1: Mark with a marker. Slide the ring onto the pipe until it bottoms out, then mark the insertion depth on the pipe with a marker.
•Step 2: Apply the special metal sealant. When applying, ensure even coverage at 360 degrees and avoid getting sealant on the pipe edges.
•Step 3: Insert the pipe. Slide the pipe into the ring until it reaches the inner stop, then secure the fixed end to prevent loosening.
•Step 4: Crimping and connection. Select a die head matching the ring's model. During crimping, insert the ring into the bottom of the die head until it is fully seated.
•Step 5: Inspect and ensure compliance. Verify that the compression is fully seated, confirming the safety line of the Lofluorine crimp Ring is adjacent to the ring body.
